32-bit RISC microcontroller featuring 80 MHz operation and 512KB FLASH memory. This surface-mount device offers 32KB RAM, 85 programmable I/Os, and multiple interfaces including I2C, SPI, USB, and UART. Operating from 2.3V to 3.6V, it includes 5 timers/counters, 2 UART channels, and integrated peripherals like DMA and WDT. Packaged in a TQFP, it supports an operating temperature range of -40°C to 85°C.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX460F512LT-80I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, SPI, USB, UART, IrDA, USART
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
85
Number of Programmable I/O
85
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX460F512LT-80I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX460F512LT-80I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

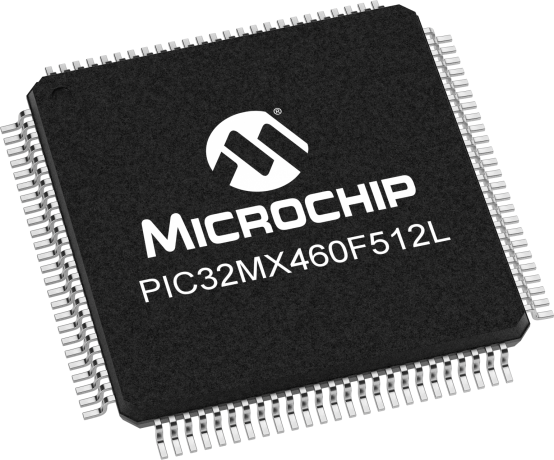

Product Images
