32-bit PIC microcontroller featuring 80MHz operation and 64KB FLASH memory. This surface mount TQFP package offers 53 programmable I/Os, 16 ADC channels, and multiple communication interfaces including I2C (4 channels), SPI (3 channels), UART (6 channels), CAN, and USB. Integrated peripherals include a watchdog timer, DMA, and 5 PWM channels, operating from 2.3V to 3.6V with a temperature range of -40°C to 85°C.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX534F064HT-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, USART, USB, UART, CAN
Length
10mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
53
Number of I2C Channels
4
Number of Programmable I/O
53
Number of PWM Channels
5
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
6
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX534F064HT-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX534F064HT-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

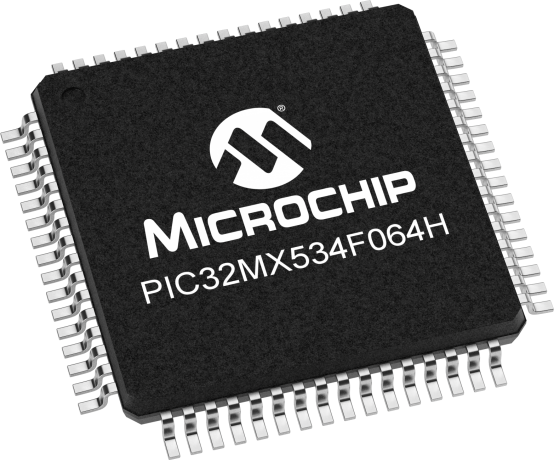

Product Images
