32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 80MHz with 512KB FLASH memory and 64KB RAM. This surface-mount QFN package offers 49 I/Os, 28 ADC channels, and multiple communication interfaces including I2C (2 channels), SPI (3 channels), USB, UART, CAN, and Ethernet. Integrated peripherals include 5 timers/counters, DMA, and a watchdog timer, with a supply voltage range of 2.3V to 3.6V and an operating temperature range of -40°C to 85°C.
Frequency50MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX570F512H-I/MR technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Height
0.95mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, Ethernet, I2S
Lead Free
Lead Free
Length
9mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
28
Number of I/Os
49
Number of I2C Channels
2
Number of SPI Channels
3
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX570F512H-I/MR Datasheet
Download the complete datasheet for Microchip PIC32MX570F512H-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

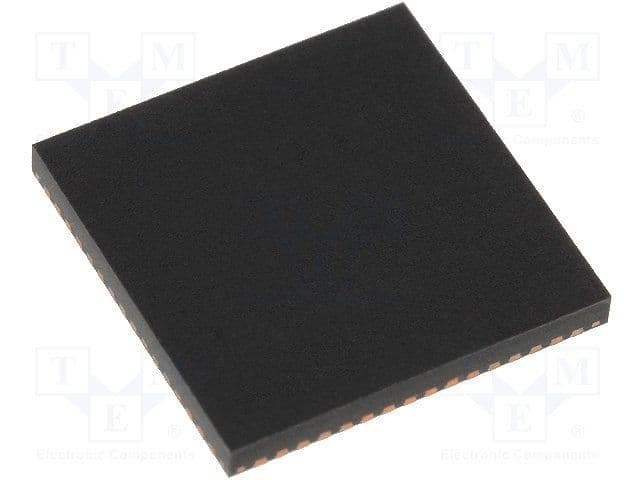

Product Images
