32-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 80MHz. This surface mount QFN package offers 64KB FLASH and 32KB RAM, with 53 programmable I/Os. Integrated peripherals include multiple I2C, SPI, UART, and USB interfaces, along with Ethernet and 16 ADC channels. Designed for a wide operating temperature range of -40°C to 85°C, with supply voltages from 2.3V to 3.6V.
Frequency80MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX664F064HT-I/MR technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Height
0.95mm
Interface
I2C, SPI, USART, USB, Ethernet, UART
Length
9mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
16
Number of Ethernet Channels
1
Number of I/Os
53
Number of I2C Channels
4
Number of Programmable I/O
53
Number of PWM Channels
5
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
6
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX664F064HT-I/MR Datasheet
Download the complete datasheet for Microchip PIC32MX664F064HT-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

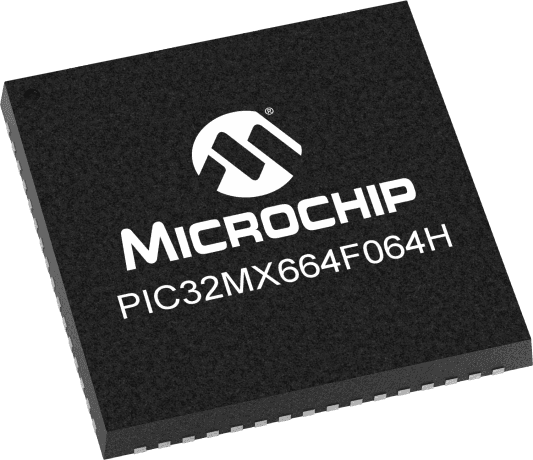

Product Images
