32-bit microcontroller featuring an 80MHz PIC core, 128KB FLASH memory, and 32KB RAM. Offers extensive connectivity with I2C, SPI, USART, USB, Ethernet, and UART interfaces. Includes 16 A/D converter channels, 5 PWM channels, and 5 timers/counters. Packaged in a 64-pin QFN for surface mounting, operating from 2.3V to 3.6V supply voltage with a temperature range of -40°C to 85°C.
Frequency80MHz
PackageQFN
Current19mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX664F128H-I/MR technical specifications.
General
| Address Bus Width | 32b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Frequency | 80MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, USART, USB, Ethernet, UART |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Frequency | 80MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 16 |
| Number of Bits | 32 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 53 |
| Number of I2C Channels | 4 |
| Number of Programmable I/O | 53 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 6 |
| Oscillator Type | Internal |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C |
| Radiation Hardening | No |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 32MX |
| Supply Current | 19mA |
| Watchdog Timer | Yes |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX664F128H-I/MR Datasheet
Download the complete datasheet for Microchip PIC32MX664F128H-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

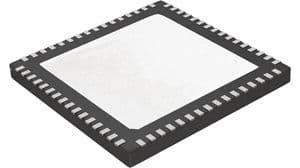

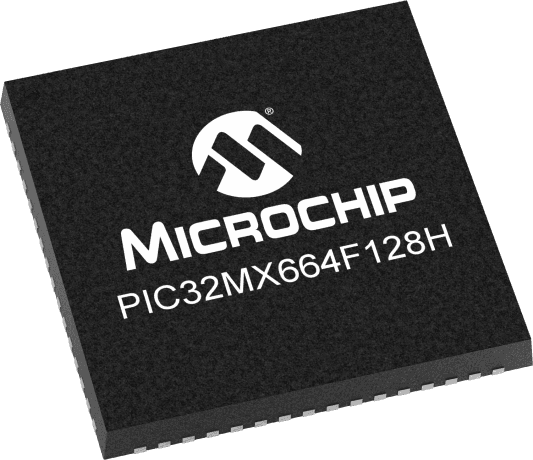

Product Images
