32-bit RISC microcontroller featuring 80MHz operation and 256KB FLASH memory. This surface mount device offers 64KB RAM and a wide array of peripherals including I2C, SPI, USB, CAN, UART, Ethernet, and USART interfaces. It boasts 51 programmable I/O pins, 16 ADC channels, 5 PWM channels, and 5 timers/counters. Operating from 2.3V to 3.6V, this RoHS compliant component is housed in a 10mm x 10mm TQFP package with a 1.05mm height.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX675F256H-80I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Density
256KB
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, USB, CAN, UART, Ethernet, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
16
Number of Ethernet Channels
1
Number of I/Os
51
Number of I2C Channels
4
Number of Programmable I/O
51
Number of PWM Channels
5
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
6
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX675F256H-80I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX675F256H-80I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

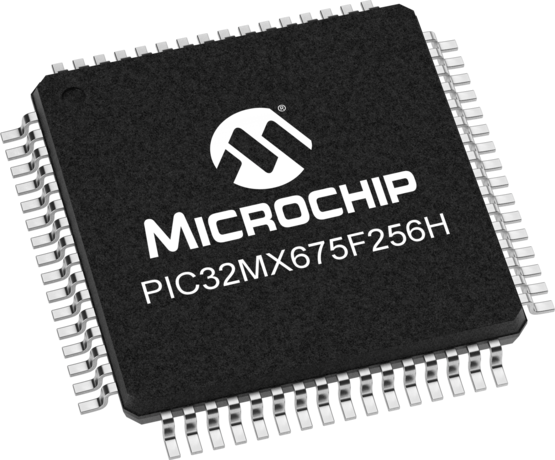

Product Images
