32-bit RISC microcontroller featuring 80MHz operation and 512KB FLASH memory. Includes 128KB RAM, 53 I/O pins, and 5 programmable I/O pins. Supports I2C, SPI, RS-232, USB, UART, Ethernet, and USART interfaces. Operates from 2.3V to 3.6V, with a temperature range of -40°C to 105°C. TQFP package for surface mounting, with integrated peripherals like PWM, WDT, DMA, Brown-out Detect/Reset, and POR.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX695F512HT-80V/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Frequency | 80MHz |
| Interface | I2C, SPI, RS-232, USB, UART, Ethernet, USART |
| Max Frequency | 80MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of I/Os | 53 |
| Number of Programmable I/O | 5 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 6 |
| Oscillator Type | Internal |
| Package Quantity | 1200 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 128KB |
| RoHS Compliant | Yes |
| Series | PIC® 32MX |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX695F512HT-80V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX695F512HT-80V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

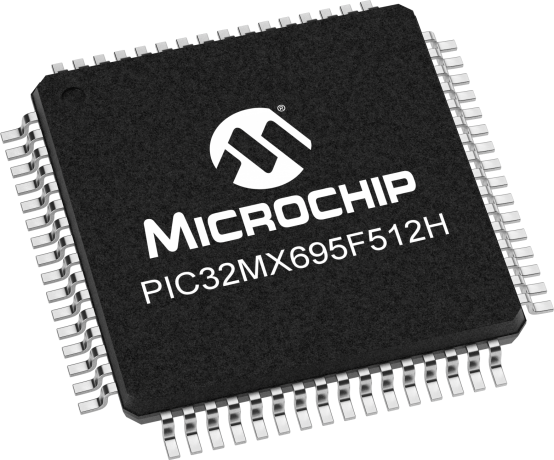

Product Images
