32-bit RISC microcontroller featuring 80MHz operation and 512KB FLASH memory. This surface-mount device offers a 32-bit data bus, 64KB RAM, and 53 I/O pins, including 5 programmable. Integrated peripherals include I2C, SPI, RS-232, USB, UART, Ethernet, USART, CAN, DMA, PWM, WDT, Brown-out Detect/Reset, and POR. Operating from 2.3V to 3.6V, it supports temperatures from -40°C to 105°C.
Frequency80MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX775F512HT-80V/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, SPI, RS-232, USB, UART, Ethernet, USART, CAN
Max Frequency
80MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
5
Number of Timers/Counters
5
Number of UART Channels
6
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX775F512HT-80V/MR Datasheet
Download the complete datasheet for Microchip PIC32MX775F512HT-80V/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

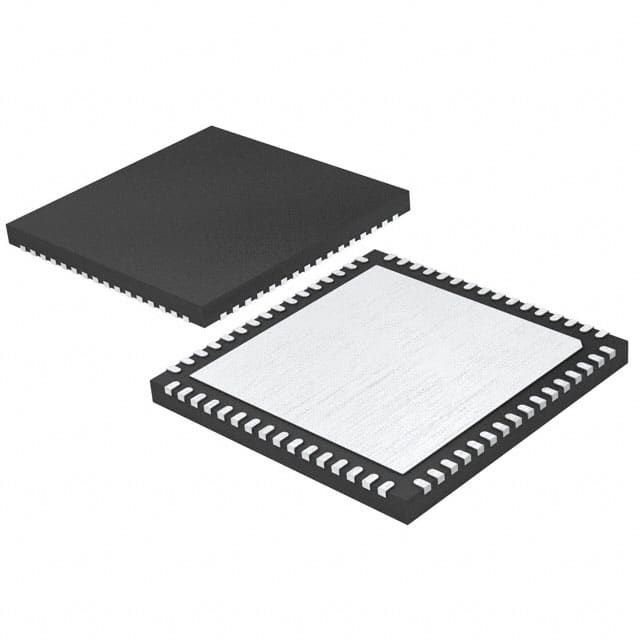

Product Images
