Microchip
PIC32MX775F512LT-80I/BG
32-BIT, FLASH, 80 MHz, RISC MICROCONTROLLER, PBGA121, 10 X 10 MM, 1.10 MM HEIGHT, LEAD FREE, PLASTIC, XBGA-121
Frequency80MHz
PackageTFBGA
Quick Jump:
Technical Specifications
Microchip PIC32MX775F512LT-80I/BG technical specifications.
General
Package/Case
TFBGA
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, Ethernet, UART, USART, CAN
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of Programmable I/O
85
Number of Timers/Counters
5
Number of UART Channels
6
Oscillator Type
Internal
Package Quantity
2200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX775F512LT-80I/BG Datasheet
Download the complete datasheet for Microchip PIC32MX775F512LT-80I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

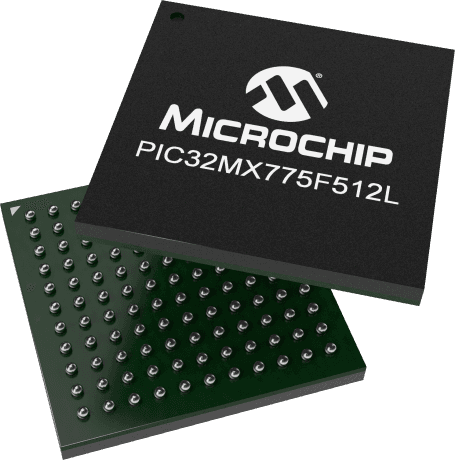

Product Images
