32-bit PIC RISC microcontroller featuring 2MB FLASH memory and 512KB RAM. Operates at up to 200MHz with a 32-bit data bus. Offers extensive connectivity including I2C (4 channels), SPI (4 channels), USB (1 channel), UART (6 channels), Ethernet (1 channel), and I2S. Includes 24 ADC channels, 9 timers/counters, and 46 programmable I/Os. Packaged in a 64-pin TQFP with a temperature range of -40°C to 85°C.
Frequency200MHz
PackageQFP
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048ECG064-I/PT technical specifications.
General
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
200MHz
Height
1.05mm
Interface
I2C, SPI, USB, UART, Ethernet, USART, I2S
Length
10mm
Max Frequency
200MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
2MB
Memory Type
FLASH,
Min Supply Voltage
2.2V
Number of ADC Channels
24
Number of Ethernet Channels
1
Number of I/Os
46
Number of I2C Channels
4
Number of Programmable I/O
46
Number of SPI Channels
4
Number of Timers/Counters
9
Number of UART Channels
6
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MZ
Watchdog Timer
Yes
Weight
0.01272oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MZ2048ECG064-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MZ2048ECG064-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

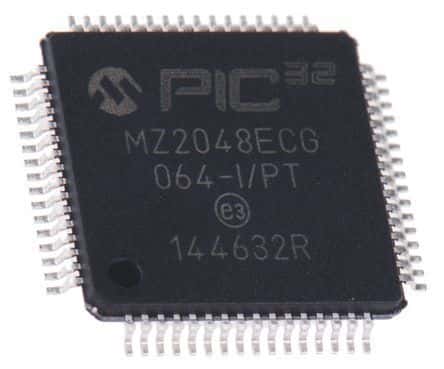

Product Images
