32-bit PIC RISC microcontroller featuring 2MB FLASH memory and 512KB RAM. Operates at up to 200MHz with a 32-bit data bus. Offers extensive connectivity including I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, and I2S interfaces. Includes 48 ADC channels, 120 programmable I/Os, and 9 timers/counters. Packaged in a 144-pin TQFP, this RoHS compliant component operates from -40°C to 85°C.
Frequency200MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048ECG144-I/PH technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
200MHz
Interface
I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, I2S
Max Frequency
200MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
48
Number of I/Os
120
Number of Programmable I/O
120
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MZ
Watchdog Timer
Yes
Weight
0.04653oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MZ2048ECG144-I/PH Datasheet
Download the complete datasheet for Microchip PIC32MZ2048ECG144-I/PH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

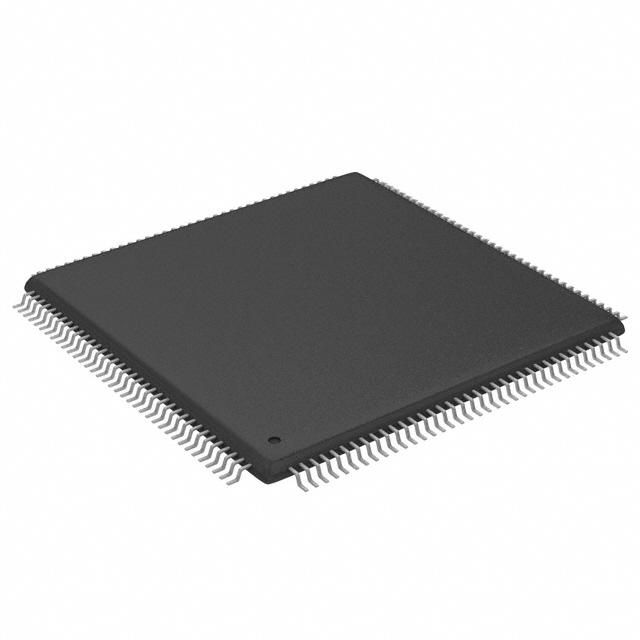

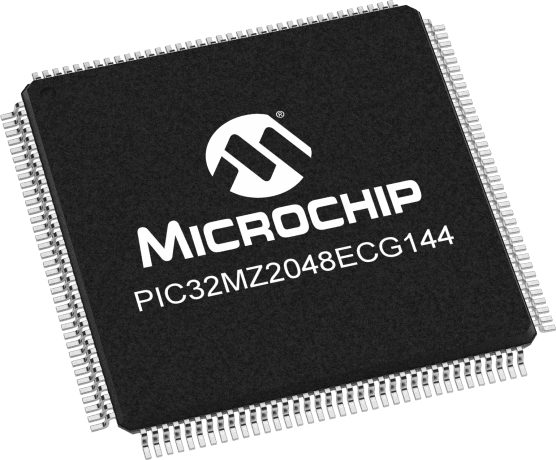

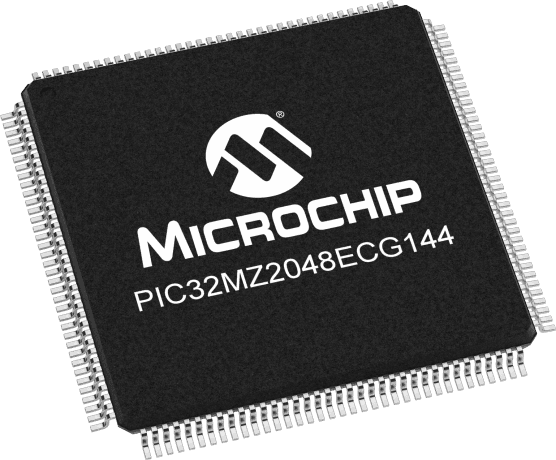

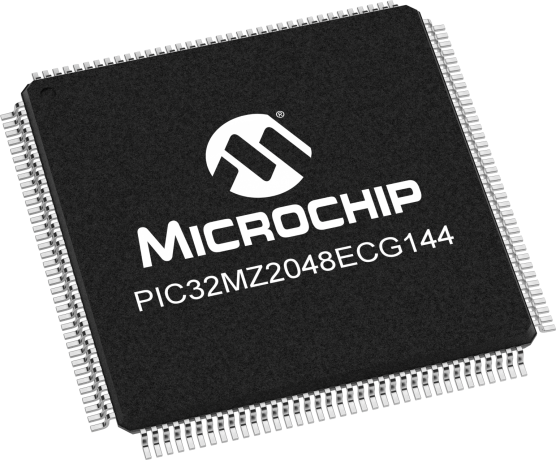

Product Images
