32-bit PIC RISC microcontroller featuring 2MB FLASH memory and 512KB RAM. Operates at up to 200MHz with a 32-bit data bus width and 100Mbps data rate. Offers extensive connectivity with I2C (5 channels), SPI (6 channels), USB, UART (6 channels), Ethernet (1 channel), USART, EBI/EMI, and I2S interfaces. Includes 48 ADC channels, 120 I/Os, 9 timers/counters, and peripherals like DMA, PWM, and WDT. Packaged in a 144-pin LQFP with a 200MHz max frequency, 2.3V to 3.6V supply voltage, and an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC32MZ2048ECG144-I/PL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

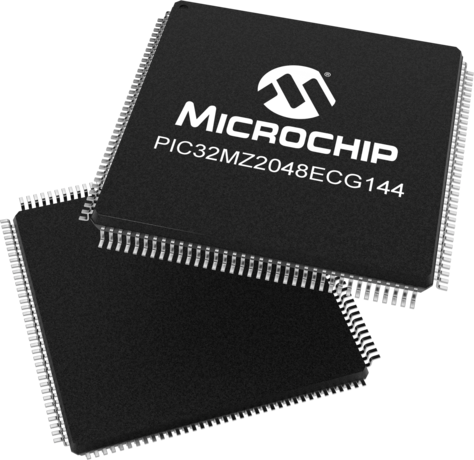

Microchip PIC32MZ2048ECG144-I/PL technical specifications.
| Package/Case | LQFP |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Data Rate | 100Mbps |
| Frequency | 200MHz |
| Height | 1.5mm |
| Interface | I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, I2S |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2MB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.3V |
| Number of ADC Channels | 48 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 120 |
| Number of I2C Channels | 5 |
| Number of Programmable I/O | 120 |
| Number of SPI Channels | 6 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 6 |
| Oscillator Type | Internal |
| Package Quantity | 60 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 512KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 32MZ |
| Watchdog Timer | Yes |
| Weight | 0.045518oz |
| Width | 20mm |
| RoHS | Compliant |
