32-bit PIC microcontroller featuring a 200MHz core, 2MB FLASH memory, and 512KB RAM. Offers extensive connectivity with I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, and I2S interfaces. Includes 120 programmable I/Os, 48 ADC channels, and 9 timers/counters. Operates from -40°C to 85°C with a 3.6V supply voltage, packaged in LQFP and supplied on tape and reel.
Frequency200MHz
PackageLQFP
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048ECG144T-I/PL technical specifications.
General
Package/Case
LQFP
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, I2S
Max Frequency
200MHz
Max Operating Temperature
85°C
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
48
Number of I/Os
120
Number of Programmable I/O
120
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
700
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512KB
RoHS Compliant
Yes
Series
PIC® 32MZ
Watchdog Timer
Yes
Weight
0.045518oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MZ2048ECG144T-I/PL Datasheet
Download the complete datasheet for Microchip PIC32MZ2048ECG144T-I/PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

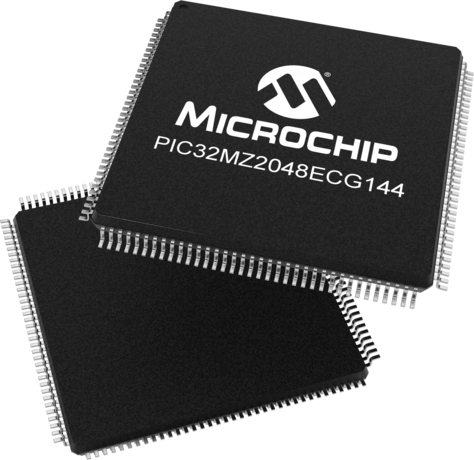

Product Images
