32-bit PIC microcontroller featuring a 200MHz core, 2MB FLASH memory, and 512KB RAM. Offers extensive connectivity with I2C, SPI, USB, UART, Ethernet, USART, CAN, and I2S interfaces. Includes 24 ADC channels, 53 I/Os (46 programmable), 9 timers/counters, and integrated peripherals like PWM and WDT. Operates from -40°C to 85°C with a 3.6V supply voltage, packaged in a VQFN tray.
Frequency200MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048ECM064-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, Ethernet, USART, CAN, I2S
Max Frequency
200MHz
Max Operating Temperature
85°C
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
24
Number of I/Os
53
Number of Programmable I/O
46
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
40
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512KB
RoHS Compliant
Yes
Series
PIC® 32MZ
Watchdog Timer
Yes
Weight
0.007277oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MZ2048ECM064-I/MR Datasheet
Download the complete datasheet for Microchip PIC32MZ2048ECM064-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

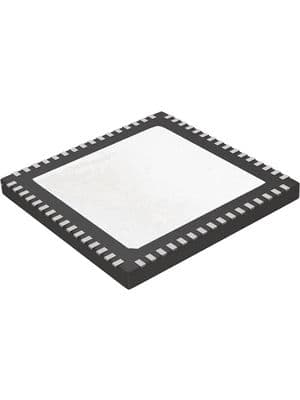

Product Images
