32-bit PIC microcontroller featuring a 200MHz core, 2MB FLASH memory, and 512KB RAM. Offers 120 programmable I/O pins and extensive interfaces including I2C, SPI, USB, Ethernet, and CAN. Includes 9 timers/counters, 48 ADC channels, and integrated peripherals like DMA and WDT. Operates from -40°C to 85°C in a TQFP package, supplied on tape and reel.
Frequency200MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048ECM144T-I/PH technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, CAN, I2S
Max Frequency
200MHz
Max Operating Temperature
85°C
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
48
Number of I/Os
120
Number of Programmable I/O
120
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
900
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512KB
RoHS Compliant
Yes
Series
PIC® 32MZ
Watchdog Timer
Yes
Weight
0.04653oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MZ2048ECM144T-I/PH Datasheet
Download the complete datasheet for Microchip PIC32MZ2048ECM144T-I/PH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

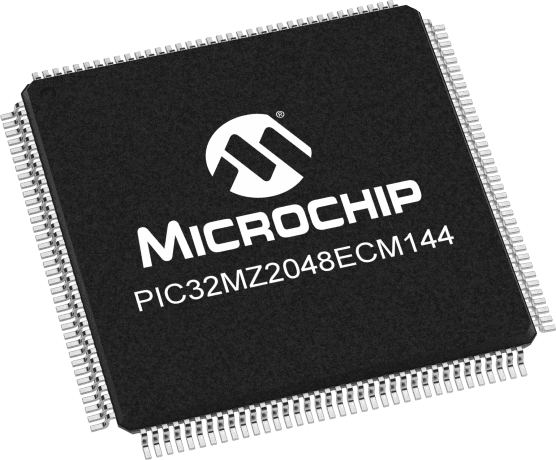

Product Images
