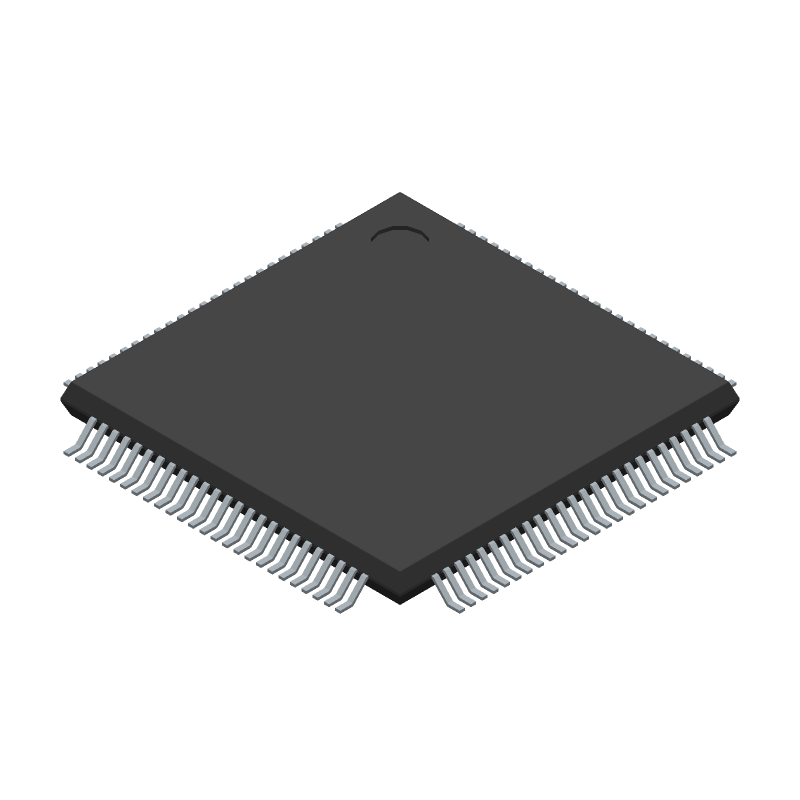

32-bit industrial temperature microcontroller featuring a 252MHz clock speed and 78 I/O lines. This FLASH programmable device operates from a 2.1V to 3.6V supply and includes PWM channels, ADC, and DMA channels. Packaged in a 100-terminal S-PQFP-G100 with dimensions of 14mm x 14mm, it supports an operating temperature range of -40°C to 85°C and meets TS 16949 screening levels.
Frequency252
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048EFG100-I/PF technical specifications.
General
Max Operating Temperature
85
Number of Terminals
100
Min Operating Temperature
-40
Terminal Position
QUAD
JEDEC Package Code
S-PQFP-G100
Width
14
Length
14
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom
3.3
Supply Voltage-Min
2.1
Supply Voltage-Max
3.6
Clock Frequency-Max
64
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER
Number of I/O Lines
78
External Data Bus Width
0
Address Bus Width
0
Bit Size
32
Speed
252
ROM Programmability
FLASH
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
DAC Channels
NO
Screening Level
TS 16949
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
