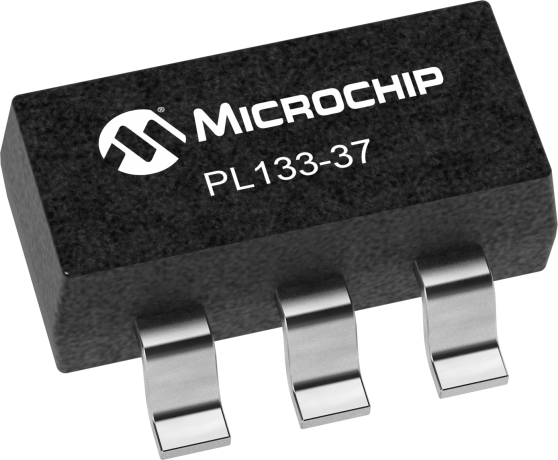

The PL133-37TC is a single clock buffer IC with LVCMOS input, packaged in a 6-lead SOT-23 surface mount package. It operates over a supply voltage range of 1.62V to 3.63V and is RoHS compliant. The device is capable of handling a maximum frequency of 150MHz and has a maximum supply current of 1.2mA. It is suitable for use in applications requiring a reliable clock buffer with low power consumption.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PL133-37TC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip PL133-37TC technical specifications.
| Package/Case | SOT-23-6 |
| Input | LVCMOS |
| Lead Free | Lead Free |
| Max Frequency | 150MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 1.62V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 3 |
| Package Quantity | 20 |
| Packaging | Strip |
| RoHS Compliant | Yes |
| Supply Current | 1.2mA |
| RoHS | Compliant |
