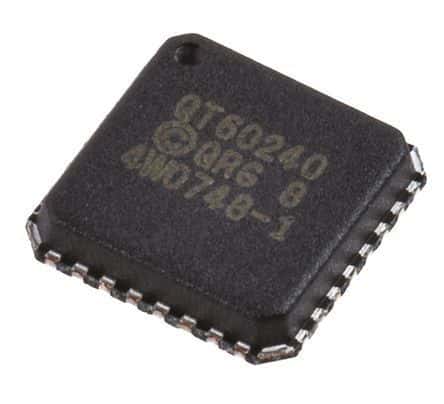

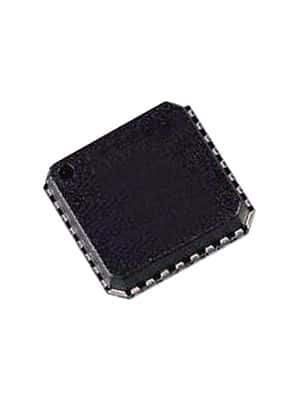

Capacitive touch screen controller featuring 24 inputs and 10-bit resolution. This integrated circuit supports I2C, SPI, and Serial interfaces, operating from a 1.8V to 5.5V supply range with a typical 5V operating voltage and 4.6mA current. Packaged in a 32-pin VQFN (5mm x 5mm x 1mm) for surface mounting, it offers a wide operating temperature range of -40°C to 85°C. The component is RoHS compliant and supplied in cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip QT60240-ISG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Height | 1mm |
| Interface | I2C, SPI, Serial |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Inputs | 24 |
| Operating Supply Current | 4.6mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | QMatrix™ |
| Termination | SMD/SMT |
| Width | 5mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip QT60240-ISG to view detailed technical specifications.
