Microchip

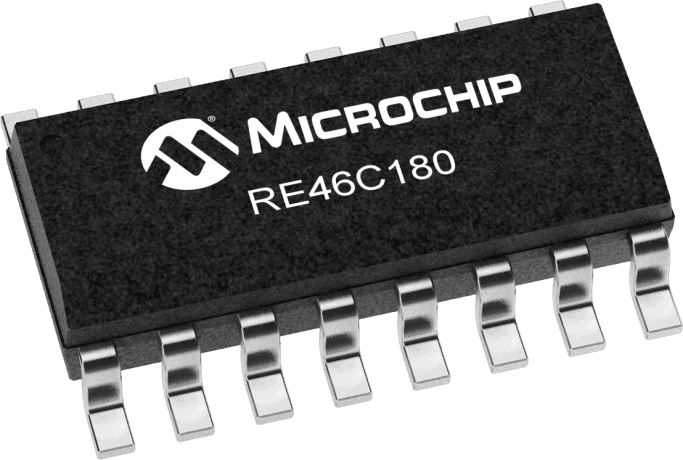

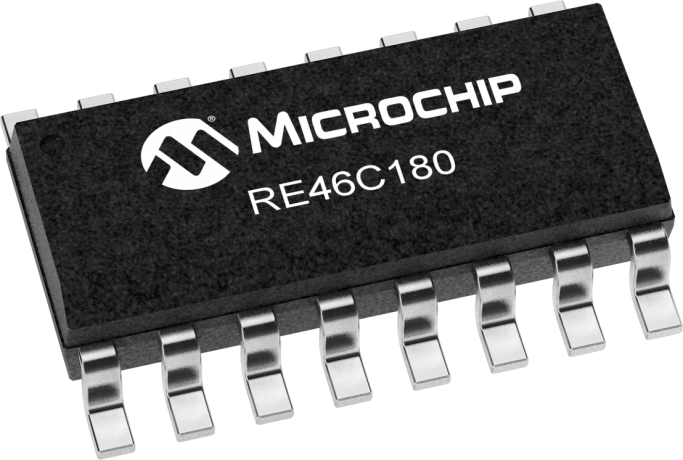

RE46C180S16F
CMOS Programmable Ionization Smoke Detector Digital Output 9V 16-Pin SOIC N Tube
PackageSOIC
Current6uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip RE46C180S16F technical specifications.
General
Package/Case
SOIC
Interface
Serial
Lead Free
Lead Free
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Current
60uA
Max Supply Voltage
12V
Min Supply Voltage
6V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Operating Supply Current
3.8uA
Output Type
Voltage
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
3.8uA
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
6uA
Compliance
RoHS
Compliant
Datasheet
Microchip RE46C180S16F Datasheet
Download the complete datasheet for Microchip RE46C180S16F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
