Technical Specifications
Microchip SST12LP22-QUCE technical specifications.
General
| Amplifier Type | POWER |
| Frequency | 2.5GHz |
| Gain | 27.5dB |
| Height | 0.55mm |
| Length | 3mm |
| Max Frequency | 2.5GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Current | 135mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Test Frequency | 2.4GHz |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST12LP22-QUCE Datasheet
Download the complete datasheet for Microchip SST12LP22-QUCE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

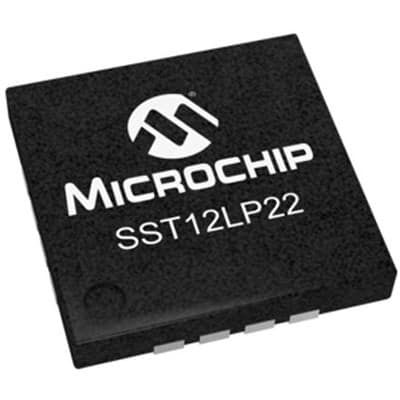

Product Images
