2Mb serial SPI flash memory with 8-bit data bus width and 18-bit address bus. Features 20ns access time, 20MHz maximum frequency, and operates from a 2.7V to 3.6V supply voltage. This surface mount component is packaged in a WSON-8 (PDSO8) and is RoHS compliant, suitable for commercial temperature ranges from 0°C to 70°C.
Frequency20MHz
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST25VF020-20-4C-QAE technical specifications.
General
Access Time
20ns
Access Time-Max
23ns
Address Bus Width
18b
Data Bus Width
8b
Density
2Mb
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Memory Size
2Mb
Memory Type
NAND, , FLASH
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
98
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST25
Supply Current
10mA
Supply Voltage-Nom
3.6V
Sync/Async
Synchronous
Temperature Grade
COMMERCIAL
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST25VF020-20-4C-QAE Datasheet
Download the complete datasheet for Microchip SST25VF020-20-4C-QAE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

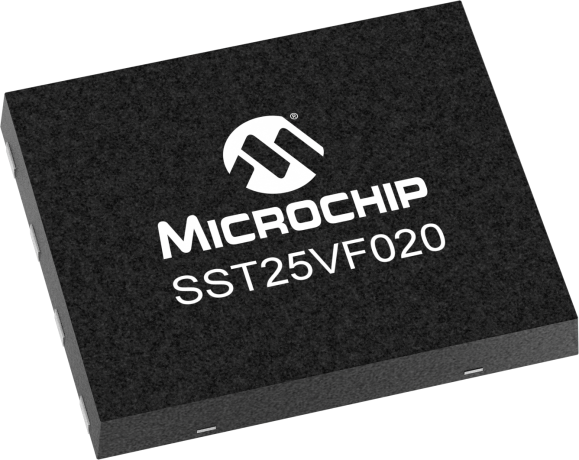

Product Images
