Frequency20MHz
PackageSOIC
Current10mA
Quick Jump:
Technical Specifications
Microchip SST25VF020-20-4I-SAE-T technical specifications.
General
Access Time-Max
23ns
Address Bus Width
18b
Package/Case
SOIC
Data Bus Width
8b
Density
2Mb
Interface
SPI, Serial
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
2Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST25
Supply Current
10mA
Sync/Async
Synchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST25VF020-20-4I-SAE-T Datasheet
Download the complete datasheet for Microchip SST25VF020-20-4I-SAE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

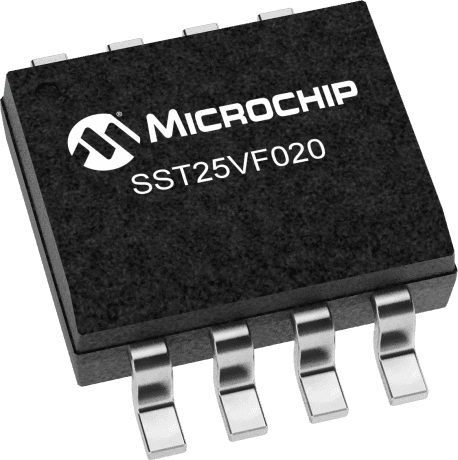

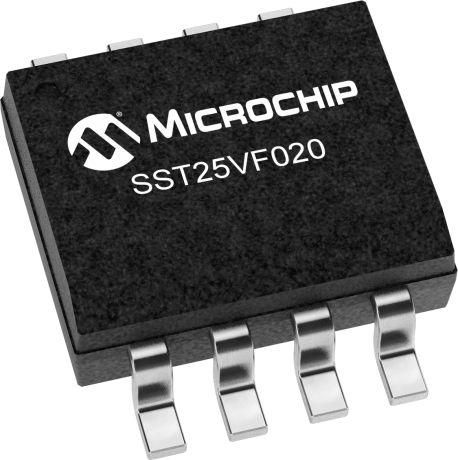

Product Images
