2Mb NOR Flash memory IC, featuring 8-bit data bus width and 256K x 8 word organization. Operates with SPI serial interface at up to 80MHz frequency, offering a fast 6ns maximum access time. Designed for surface mount with a 3.3V operating supply voltage, compatible with 2.7V to 3.6V range. Suitable for industrial temperature ranges from -40°C to 85°C.
Frequency80MHz
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST25VF020B-80-4I-QAE-T technical specifications.
General
| Access Time-Max | 6ns |
| Address Bus Width | 1b |
| Data Bus Width | 8b |
| Density | 2Mb |
| Frequency | 80MHz |
| Interface | SPI, Serial |
| Max Frequency | 80MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2Mb |
| Memory Type | NOR, , FLASH, Non-Volatile, NAND |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Words | 256000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST25 |
| Supply Current | 20mA |
| Sync/Async | Synchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST25VF020B-80-4I-QAE-T Datasheet
Download the complete datasheet for Microchip SST25VF020B-80-4I-QAE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

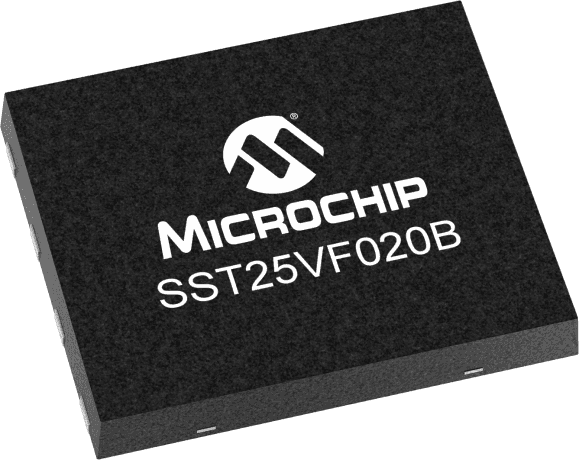

Product Images
