2Mb NOR Flash memory with 80MHz maximum frequency and 6ns access time. Features an 8-bit data bus and a 1-bit address bus, utilizing a Serial Peripheral Interface (SPI). Operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. Packaged in an 8-pin SOIC for tape and reel distribution, this industrial temperature grade component is RoHS compliant.
Frequency80MHz
PackageSOIC
Current20mA
Quick Jump:
Technical Specifications
Microchip SST25VF020B-80-4I-SAE-T technical specifications.
General
Access Time-Max
6ns
Address Bus Width
1b
Package/Case
SOIC
Data Bus Width
8b
Density
2Mb
Frequency
80MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
2Mb
Memory Type
NOR, , FLASH, Non-Volatile, NAND
Min Supply Voltage
2.7V
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST25
Supply Current
20mA
Supply Voltage-Nom
3.6V
Sync/Async
Synchronous
Temperature Grade
INDUSTRIAL
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST25VF020B-80-4I-SAE-T Datasheet
Download the complete datasheet for Microchip SST25VF020B-80-4I-SAE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

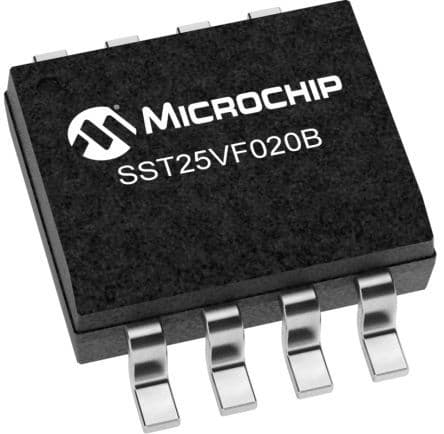

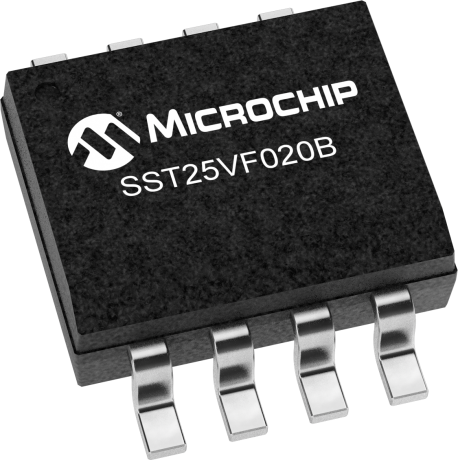

Product Images
