2Mb NOR Flash memory IC with 8-bit data bus width and 1.65V to 1.95V operating supply voltage. Features 9ns maximum access time and 40MHz maximum frequency, supporting SPI serial interface. This synchronous, non-volatile memory component is designed for surface mount applications and operates within a temperature range of -40°C to 85°C.
Frequency40MHz
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST25WF020-40-5I-QAE-T technical specifications.
General
Access Time-Max
9ns
Address Bus Width
1b
Data Bus Width
8b
Density
2Mb
Frequency
40MHz
Interface
SPI, Serial
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
1.95V
Memory Size
2Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Words
256000
Operating Supply Voltage
1.8V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST25
Supply Current
10mA
Sync/Async
Synchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST25WF020-40-5I-QAE-T Datasheet
Download the complete datasheet for Microchip SST25WF020-40-5I-QAE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

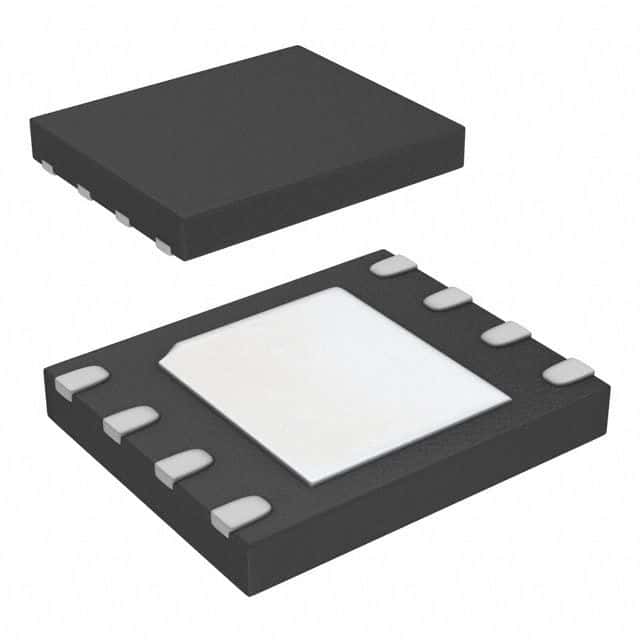

Product Images
