Technical Specifications
Microchip SST25WF040BT-40I/NP technical specifications.
General
| Density | 4Mb |
| Frequency | 40MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.95V |
| Memory Size | 4Mb |
| Memory Type | FLASH, , Non-Volatile |
| Min Operating Temperature | 65°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Packaging | Tape and Reel |
| Page Size | 256B |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SST25 |
| Supply Current | 4mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST25WF040BT-40I/NP Datasheet
Download the complete datasheet for Microchip SST25WF040BT-40I/NP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

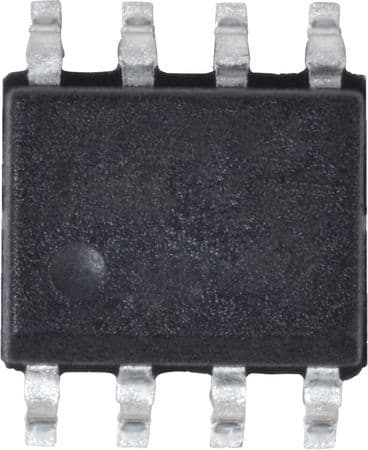

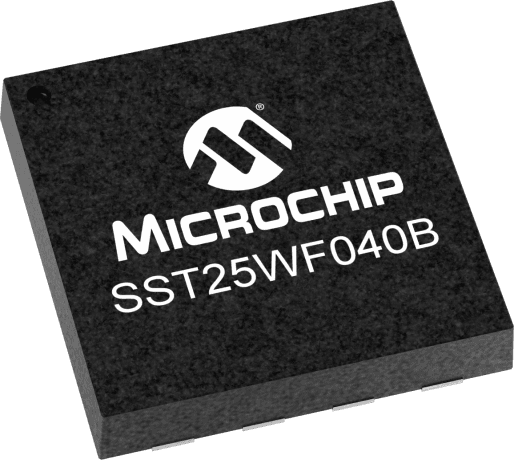

Product Images
