Microchip
SST26VF016B-104I/MF
NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 16M-bit 8ns 8-Pin WDFN EP Tube
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST26VF016B-104I/MF technical specifications.
General
Access Time
8ns
Density
16Mb
Height
0.8mm
Interface
SPI, Serial
Length
6mm
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
8mA
Packaging
Rail/Tube
Page Size
256B
RoHS Compliant
Yes
Series
SST26 SQI®
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip SST26VF016B-104I/MF Datasheet
Download the complete datasheet for Microchip SST26VF016B-104I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

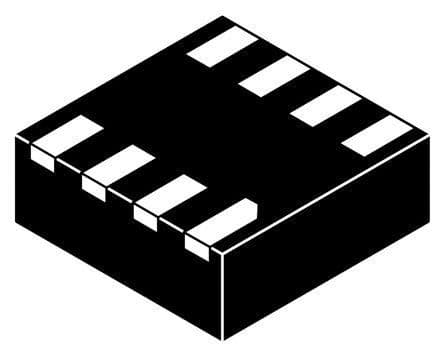

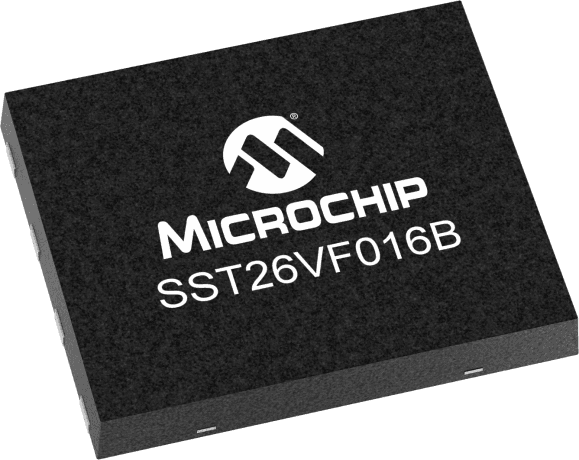

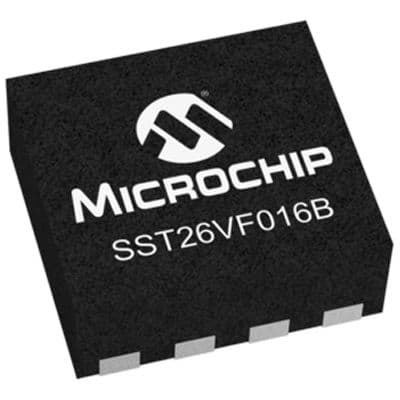

Product Images
