32Mb Serial Peripheral Interface (SPI) FLASH memory with 104MHz frequency and 3ns maximum access time. This non-volatile memory offers a 2.7V to 3.6V operating supply voltage range and a 3V nominal operating voltage. Designed for surface mount applications, it features a compact 6mm x 5mm x 0.75mm form factor. Operating across a temperature range of -40°C to 85°C, this RoHS compliant component is ideal for high-speed data storage.
Frequency104MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST26VF032B-104I/MF technical specifications.
General
| Access Time-Max | 3ns |
| Density | 32Mb |
| Frequency | 104MHz |
| Height | 0.75mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32Mb |
| Memory Type | Non-Volatile, , FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3V |
| Packaging | Rail/Tube |
| Page Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SST26 SQI® |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST26VF032B-104I/MF Datasheet
Download the complete datasheet for Microchip SST26VF032B-104I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

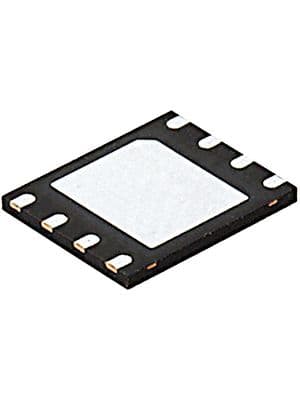

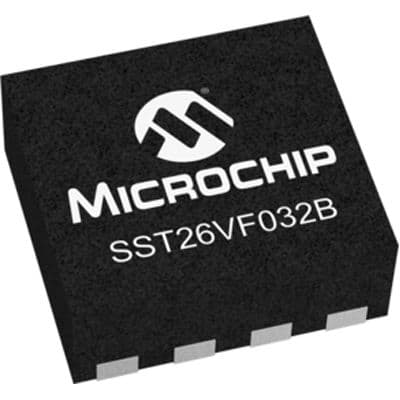

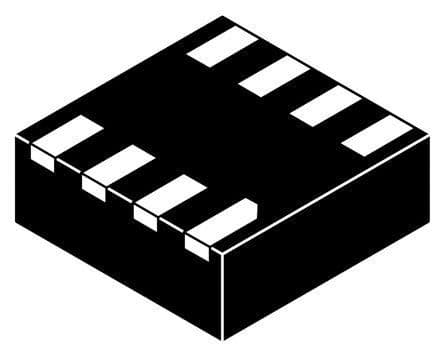

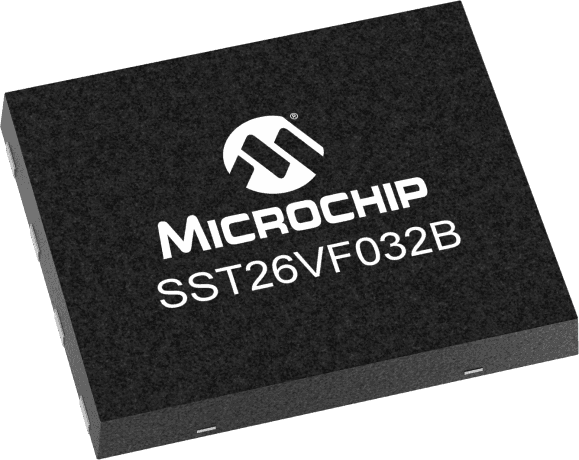

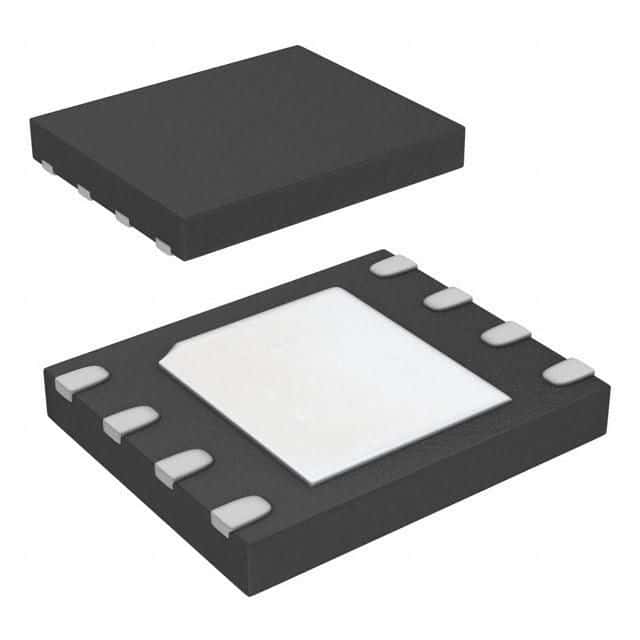

Product Images
