Technical Specifications
Microchip SST26WF016B-104I/MF technical specifications.
General
Access Time-Max
3ns
Density
16Mb
Height
0.75mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
85°C
Max Supply Voltage
1.95V
Memory Size
16Mb
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Operating Supply Voltage
1.8V
Packaging
Rail/Tube
Page Size
256B
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
SST26 SQI®
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip SST26WF016B-104I/MF Datasheet
Download the complete datasheet for Microchip SST26WF016B-104I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

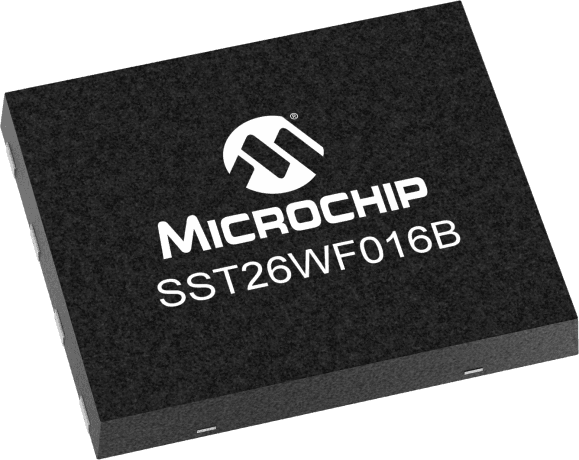

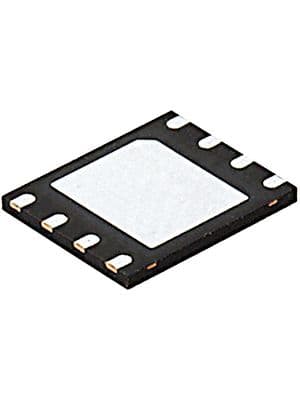

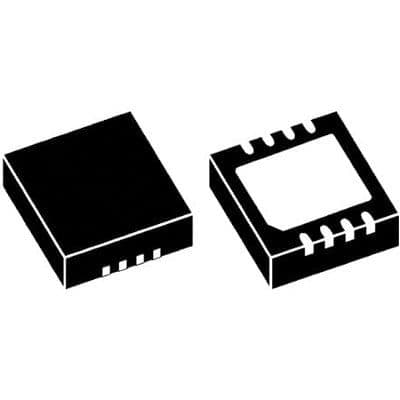

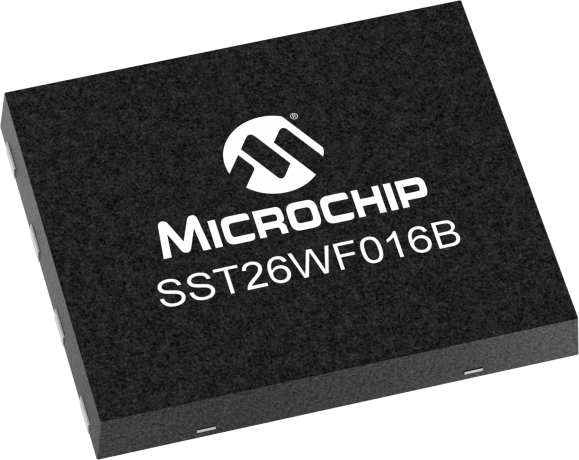

Product Images
