PackageTFBGA
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST38VF6401-90-5I-B3KE-T technical specifications.
General
Access Time
90ns
Access Time-Max
90ns
Address Bus Width
22b
Package/Case
TFBGA
Data Bus Width
16b
Density
64Mb
Interface
Parallel
Max Operating Temperature
85°C
Memory Size
64Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
SST38
Supply Current
18mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST38VF6401-90-5I-B3KE-T Datasheet
Download the complete datasheet for Microchip SST38VF6401-90-5I-B3KE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

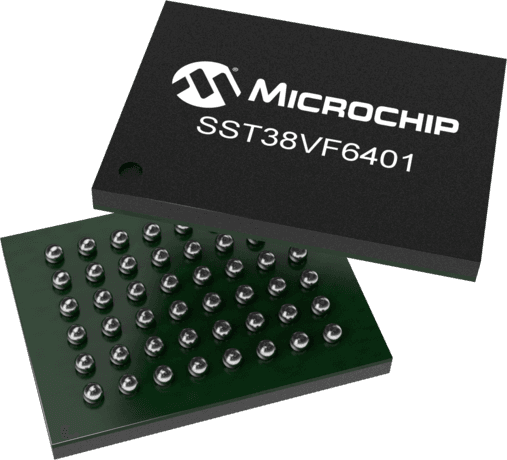

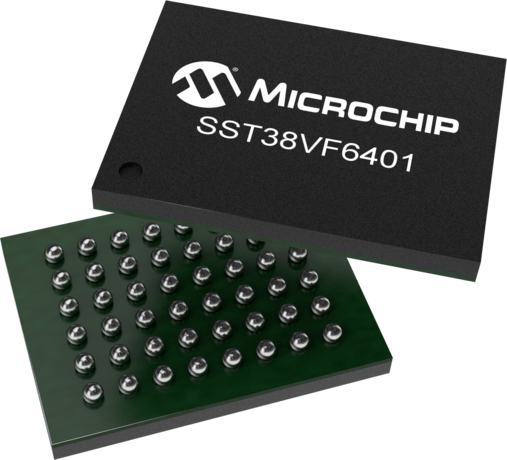

Product Images
