64Mb NOR Flash memory with a 16-bit data bus width and 22-bit address bus width. Features 90ns access time, 2.7V to 3.6V operating supply voltage range, and a 3.3V nominal supply voltage. Packaged in a 48-pin TSOP (Thin Small Outline Package) for surface mounting. This RoHS compliant component operates from -40°C to 85°C.
PackageTSOP
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST38VF6402-90-5I-EKE technical specifications.
General
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Address Bus Width | 22b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 64Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64Mb |
| Memory Type | NOR, , Non-Volatile, FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Tray |
| Page Size | 4Words |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST38 |
| Supply Current | 18mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST38VF6402-90-5I-EKE Datasheet
Download the complete datasheet for Microchip SST38VF6402-90-5I-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

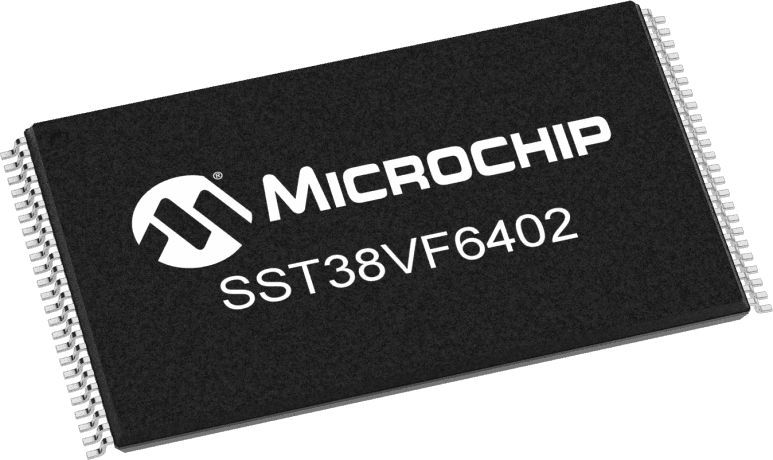

Product Images
