4Mb FLASH memory with a 256K x 16 organization, offering 55ns access time. This integrated circuit features a parallel interface and operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage. Packaged in a RoHS compliant TSOP-48 surface mount configuration, it is suitable for applications within a 0°C to 70°C temperature range.
PackageTSOP
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39LF401C-55-4C-EKE technical specifications.
General
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 1b |
| Boot Block | Bottom |
| Package/Case | TSOP |
| Density | 4Mb |
| Height | 1.05mm |
| Interface | Parallel |
| Length | 18.5mm |
| Max Operating Temperature | 70°C |
| Memory Size | 4Mb |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Words | 256000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 18mA |
| Sync/Async | Asynchronous |
| Width | 12.2mm |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39LF401C-55-4C-EKE Datasheet
Download the complete datasheet for Microchip SST39LF401C-55-4C-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

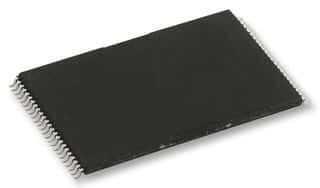

Product Images
