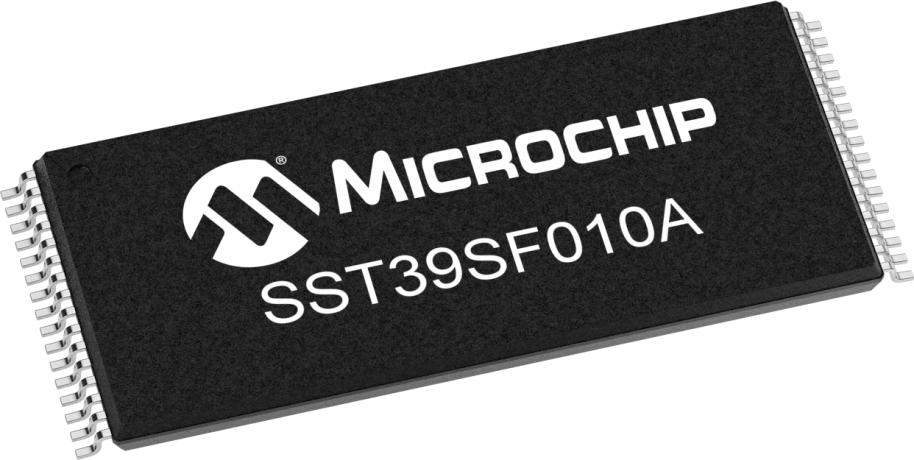

1Mb NOR Flash memory with 128K x 8 organization, featuring a 55ns access time. This asynchronous, parallel interface device operates from a 4.5V to 5.5V supply. Packaged in a 32-pin TSOP, it supports surface mounting.
PackageTSOP
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39SF010A-55-4I-WHE technical specifications.
General
Access Time
55ns
Access Time-Max
55ns
Address Bus Width
17b
Package/Case
TSOP
Data Bus Width
8b
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
NOR, , FLASH
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Words
128000
Operating Supply Voltage
5V
Package Quantity
208
Packaging
Tray
RoHS Compliant
No
Series
SST39 MPF™
Supply Current
25mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Not Compliant
