2Mb NOR Flash memory with an 8-bit data bus and 18-bit address bus. Features a 55ns access time and operates from a 4.5V to 5.5V supply voltage. This asynchronous memory is available in a 32-pin TSOP package and is RoHS compliant.
PackageTSOP
Current25mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip SST39SF020A-55-4I-WHE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip SST39SF020A-55-4I-WHE technical specifications.
General
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 18b |
| Package/Case | TSOP |
| Data Bus Width | 8b |
| Density | 2Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2Mb |
| Memory Type | NOR, , FLASH |
| Min Supply Voltage | 4.5V |
| Number of Words | 256000 |
| Operating Supply Voltage | 5V |
| Package Quantity | 208 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 25mA |
| Supply Voltage-Nom | 5.5V |
| Sync/Async | Asynchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39SF020A-55-4I-WHE Datasheet
Download the complete datasheet for Microchip SST39SF020A-55-4I-WHE to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

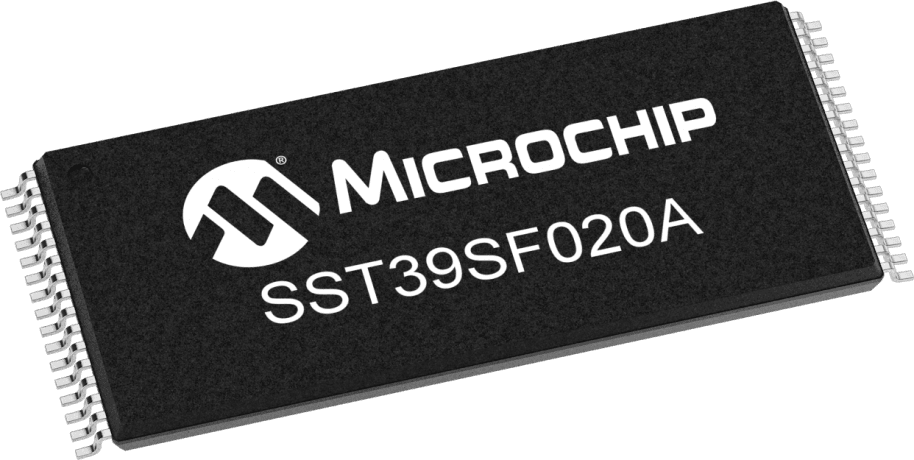

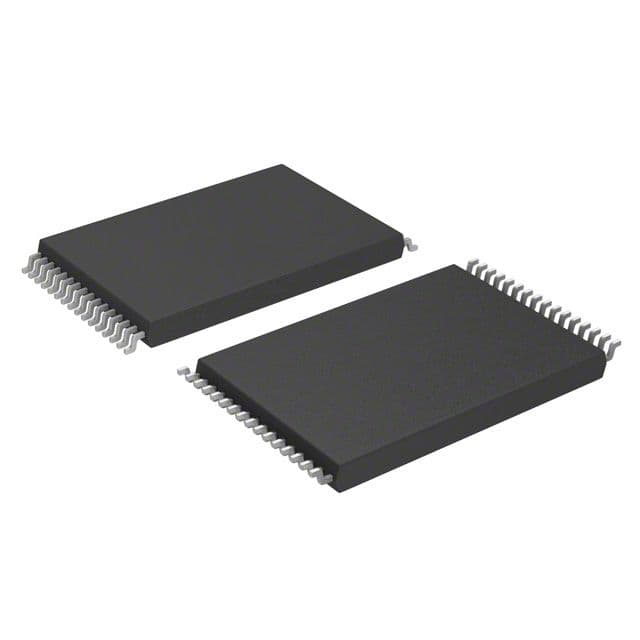

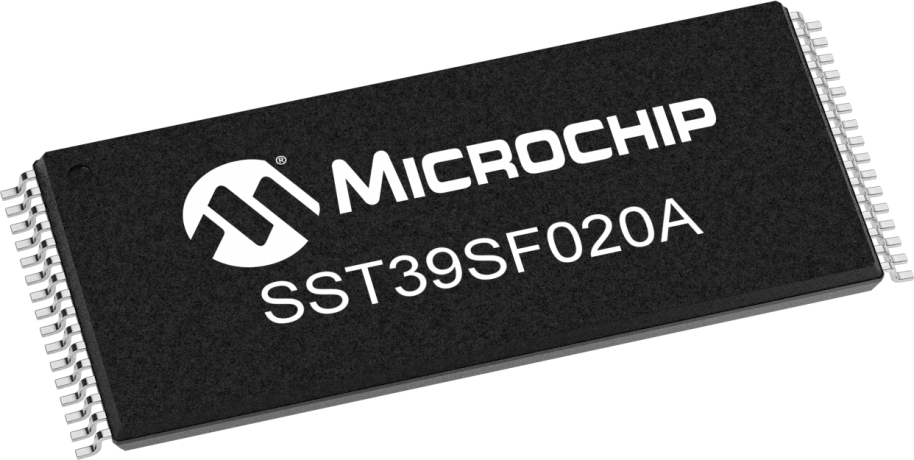

Product Images
