4Mb NOR Flash memory with a 512K x 8 organization, featuring a 70ns access time and a parallel interface. This component operates at 5V, with a supply voltage range of 4.5V to 5.5V, and a maximum supply current of 25mA. Packaged in a 32-pin PLCC, it offers asynchronous operation and is RoHS compliant.
Frequency14MHz
PackagePLCC
Current25mA
Quick Jump:
Technical Specifications
Microchip SST39SF040-70-4C-NHE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
19b
Package/Case
PLCC
Data Bus Width
8b
Density
4Mb
Frequency
14MHz
Height
0.112inch
Interface
Parallel
Lead Free
Lead Free
Length
0.453inch
Max Operating Temperature
70°C
Max Supply Current
25mA
Max Supply Voltage
5.5V
Memory Size
4Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Number of Words
512000
Operating Supply Voltage
5V
Organization
512K x 8
Package Quantity
30
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
25mA
Supply Voltage-Nom
5.5V
Sync/Async
Asynchronous
Width
0.553inch
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39SF040-70-4C-NHE Datasheet
Download the complete datasheet for Microchip SST39SF040-70-4C-NHE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

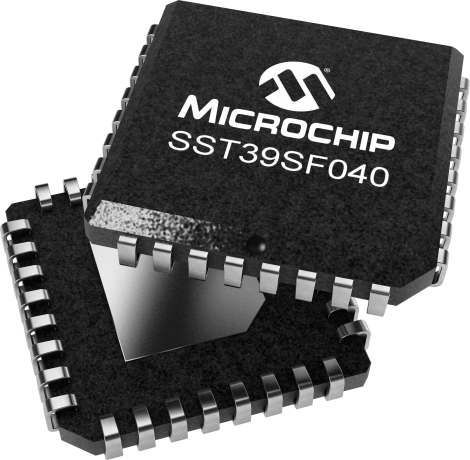

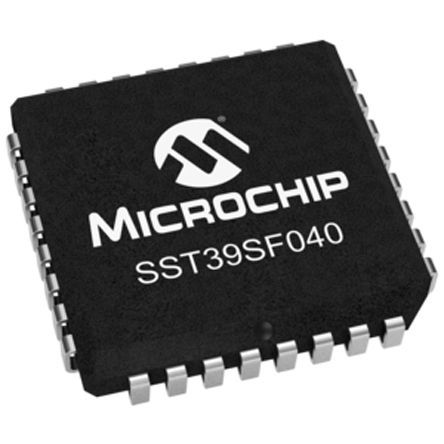

Product Images
