1Mb NOR Flash memory IC with 8-bit data bus and 17-bit address bus, offering 70ns access time. Features a 128K x 8 word organization and operates from a 2.7V to 3.6V supply voltage, with a typical 3.3V operating voltage. This asynchronous memory component is housed in a 32-pin TSOP package, is RoHS compliant, and operates across a temperature range of -40°C to 85°C.
PackageTSOP
Current20mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip SST39VF010-70-4I-WHE-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip SST39VF010-70-4I-WHE-T technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 17b |
| Package/Case | TSOP |
| Data Bus Width | 8b |
| Density | 1Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1Mb |
| Memory Type | NOR, , FLASH |
| Min Supply Voltage | 2.7V |
| Number of Words | 128000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 20mA |
| Sync/Async | Asynchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39VF010-70-4I-WHE-T Datasheet
Download the complete datasheet for Microchip SST39VF010-70-4I-WHE-T to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

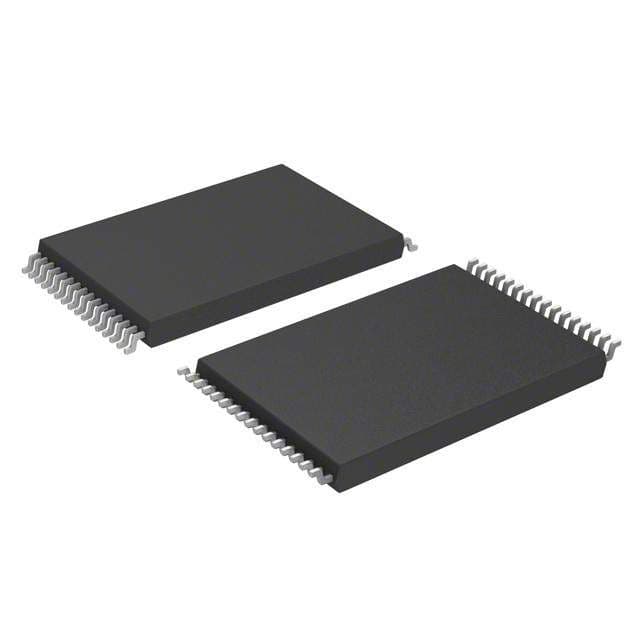

Product Images
