2Mb NOR Flash memory with an 8-bit data bus width and 18-bit address bus width. Features a 70ns access time and operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. This asynchronous memory is available in a 32-pin TSOP package, offering 256,000 words of storage. RoHS compliant and suitable for operation between -40°C and 85°C.
PackageTSOP
Current20mA
Quick Jump:
Technical Specifications
Microchip SST39VF020-70-4I-WHE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
18b
Package/Case
TSOP
Data Bus Width
8b
Density
2Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
2Mb
Memory Type
NOR, , FLASH
Min Supply Voltage
2.7V
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
208
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
20mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF020-70-4I-WHE Datasheet
Download the complete datasheet for Microchip SST39VF020-70-4I-WHE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

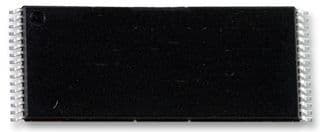

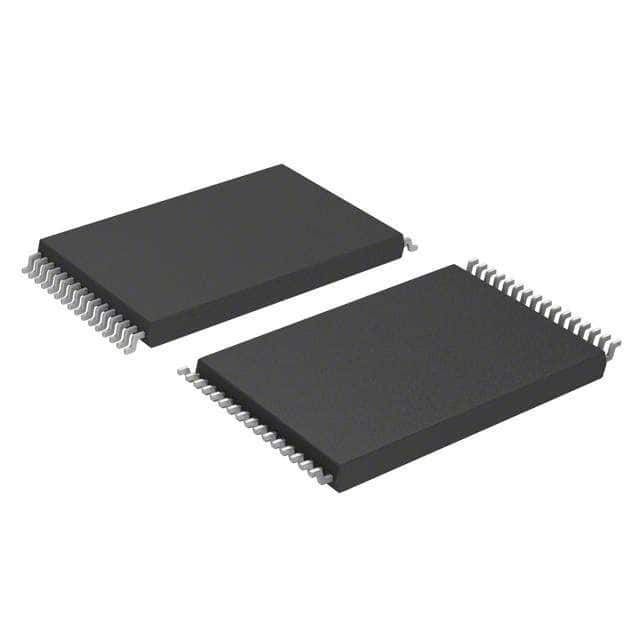

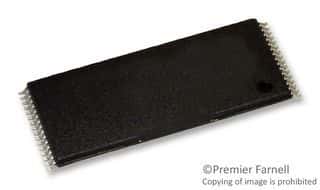

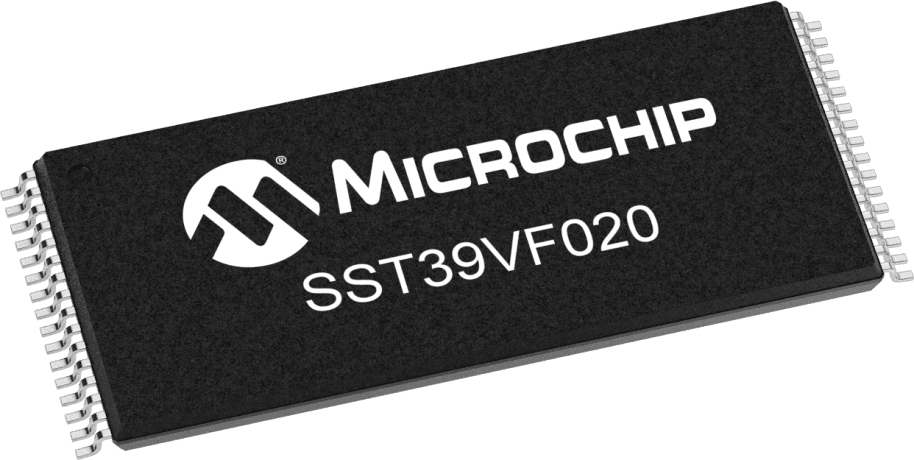

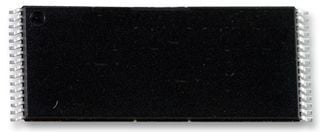

Product Images
