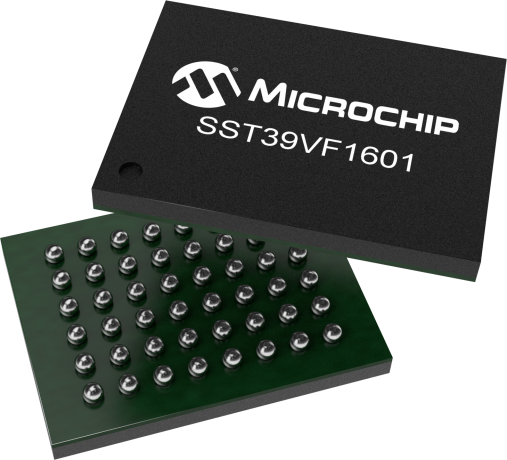

16Mb NOR Flash memory with a 16-bit data bus and 20-bit address bus, offering 70ns access time. This non-volatile memory operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. Packaged in a 48-ball TFBGA (6x8mm, 0.80mm pitch), it features a parallel, asynchronous interface. RoHS compliant and lead-free.
PackageTFBGA
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF1601-70-4C-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
20b
Package/Case
TFBGA
Data Bus Width
16b
Density
16Mb
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
6mm
Word Size
16b
Compliance
RoHS
Compliant
