16Mb NOR Flash memory with a 16-bit data bus and 20-bit address bus. Features a 70ns access time and operates from a 2.7V to 3.6V supply voltage. Packaged in a 48-pin TFBGA with 0.80mm pitch, this RoHS compliant component offers asynchronous parallel interface and a maximum operating temperature of 85°C.
PackageTFBGA
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF1601-70-4I-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
20b
Package/Case
TFBGA
Data Bus Width
16b
Density
16Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF1601-70-4I-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF1601-70-4I-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

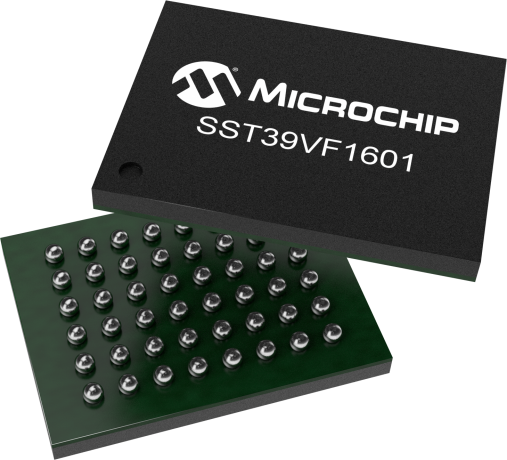

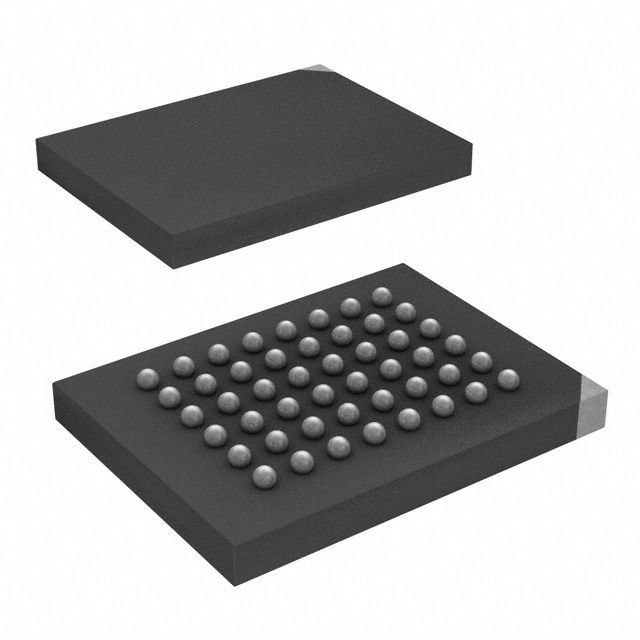

Product Images
