The SST39VF1601-70-4I-EKE-T is a 16Mb NOR flash memory device from Microchip, operating at 3.3V with a maximum access time of 70ns. It features a 20-bit address bus and a 16-bit data bus, making it suitable for various applications. The device is packaged in a TSOP package type and is available in a tape and reel packaging format. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The SST39VF1601-70-4I-EKE-T is RoHS compliant and is part of the SST39 MPF series.
PackageTSOP
Current18mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip SST39VF1601-70-4I-EKE-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip SST39VF1601-70-4I-EKE-T technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 20b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 16Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | NOR, , FLASH, Non-Volatile |
| Min Supply Voltage | 2.7V |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 18mA |
| Sync/Async | Asynchronous |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39VF1601-70-4I-EKE-T Datasheet
Download the complete datasheet for Microchip SST39VF1601-70-4I-EKE-T to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

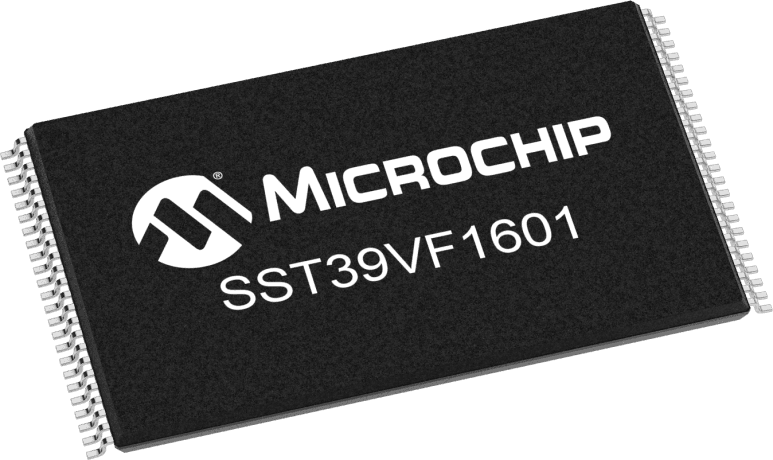

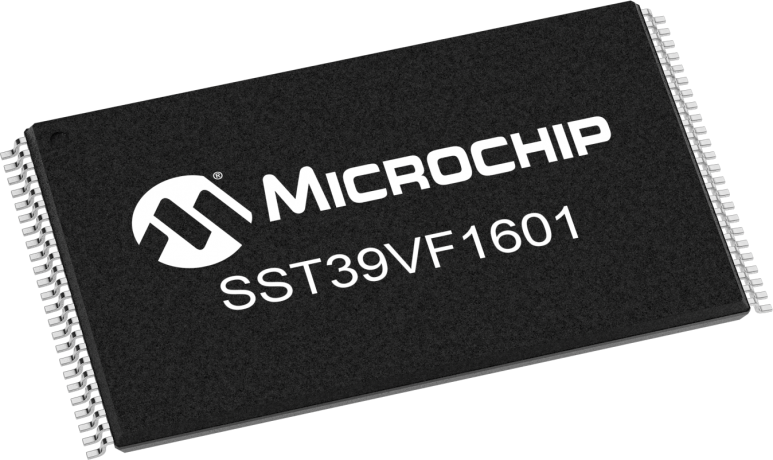

Product Images
