16Mb NOR Flash Memory, 1M x 16 configuration, offering 70ns access time. Features a 16-bit data bus and 20-bit address bus with a parallel interface. Operates from a 2.7V to 3.6V supply voltage range. Packaged in a 48-ball TFBGA (6x8mm, 0.80mm pitch).
Frequency5MHz
PackageTFBGA
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF1601C-70-4C-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
20b
Package/Case
TFBGA
Data Bus Width
16b
Density
16Mb
Frequency
5MHz
Height
0.75mm
Interface
Parallel
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
NOR, , FLASH, NAND
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
6mm
Word Size
16b
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip SST39VF1601C-70-4C-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF1601C-70-4C-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

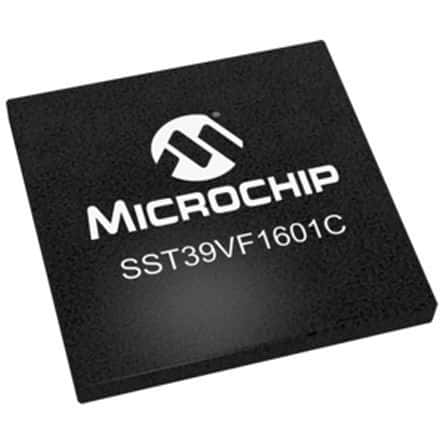

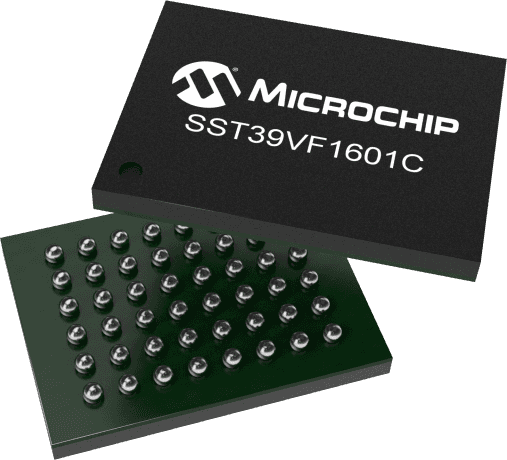

Product Images
