16Mb NOR Flash Memory, organized as 1M x 16, offers a 70ns access time. This asynchronous, non-volatile memory features a parallel interface with a 16-bit data bus and a 20-bit address bus. Operating from a 2.7V to 3.6V supply, it has a maximum operating temperature of 70°C and a typical supply current of 18mA. Packaged in a 48-pin TSOP, this component is designed for embedded applications requiring reliable data storage.
Frequency5MHz
PackageTSOP
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF1601C-70-4C-EKE technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 20b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 16Mb |
| Frequency | 5MHz |
| Height | 1.05mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 12.2mm |
| Max Operating Temperature | 70°C |
| Max Supply Current | 18mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | NOR, , Non-Volatile, FLASH, NAND |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Operating Supply Voltage | 3.3V |
| Organization | 1M x 16 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | SST39 MPF™ |
| Supply Current | 18mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Width | 18.5mm |
| Word Size | 16b |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Microchip SST39VF1601C-70-4C-EKE Datasheet
Download the complete datasheet for Microchip SST39VF1601C-70-4C-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

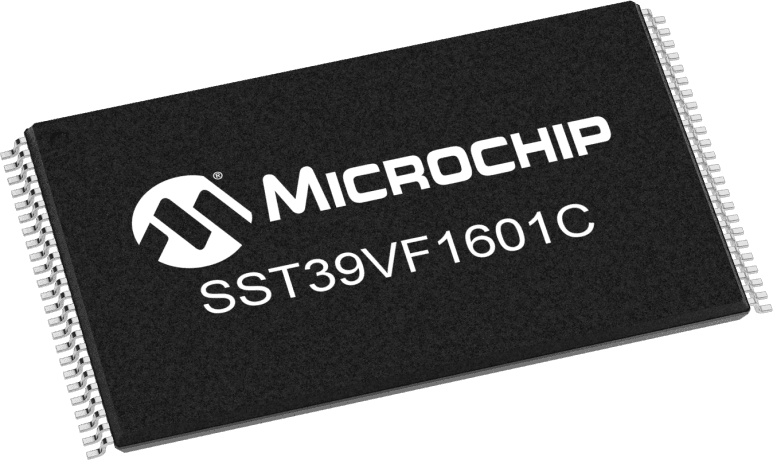

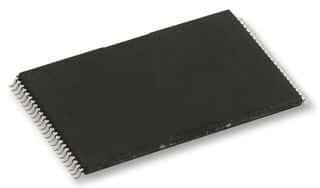

Product Images
