16Mb NOR Flash Memory, 1M x 16 bit organization, featuring a 70ns access time. This asynchronous memory component offers a 16-bit data bus and a 20-bit address bus, operating with a supply voltage range of 2.7V to 3.6V. Packaged in a TSOP-48, it is RoHS compliant and suitable for operation between 0°C and 70°C.
PackageTSOP
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF1602-70-4C-EKE technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 20b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 16Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Memory Size | 16Mb |
| Memory Type | NOR, , FLASH |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 18mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39VF1602-70-4C-EKE Datasheet
Download the complete datasheet for Microchip SST39VF1602-70-4C-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

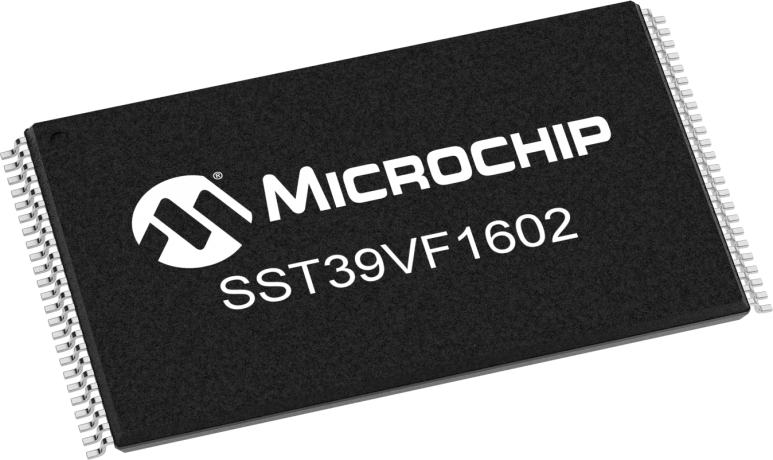

Product Images
