16Mb NOR Flash memory with an 8-bit data bus and 21-bit address bus. Features a 70ns access time and parallel interface. Operates from a 2.7V to 3.6V supply voltage with a nominal 3.3V. Packaged in a TSOP for surface mounting, this component is RoHS compliant and lead-free.
PackageTSOP
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39VF1681-70-4I-EKE-T technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 21b |
| Package/Case | TSOP |
| Data Bus Width | 8b |
| Density | 16Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 18mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | NOR, , FLASH, Non-Volatile, NAND |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 18mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39VF1681-70-4I-EKE-T Datasheet
Download the complete datasheet for Microchip SST39VF1681-70-4I-EKE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

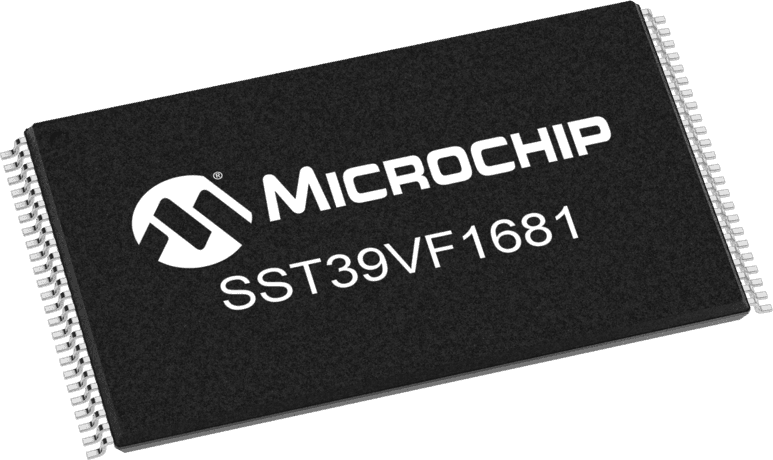

Product Images
