2Mb NOR Flash memory with a 16-bit data bus and 17-bit address bus, offering 128K words of storage. Features a fast 70ns access time and operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. Packaged in a TFBGA-48 (48-ball, 6x8mm, 0.80mm pitch) and is RoHS compliant. This asynchronous memory component is suitable for applications requiring reliable, high-speed data storage.
PackageTFBGA
Current30mA
Quick Jump:
Technical Specifications
Microchip SST39VF200A-70-4C-B3KE technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 17b |
| Package/Case | TFBGA |
| Data Bus Width | 16b |
| Density | 2Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2Mb |
| Memory Type | NOR, , FLASH |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Number of Words | 128000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 480 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 30mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SST39VF200A-70-4C-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF200A-70-4C-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

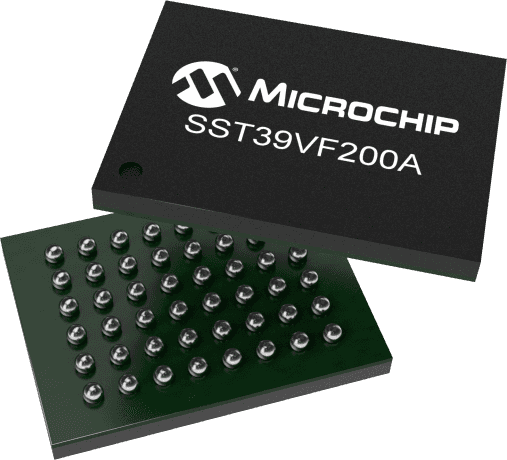

Product Images
