32Mb NOR Flash memory with a 16-bit data bus width and 21-bit address bus width. Features 70ns access time, parallel interface, and operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. This asynchronous memory is housed in a TFBGA package, is RoHS compliant, and has a maximum operating temperature of 70°C.
PackageTFBGA
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF3201-70-4C-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
21b
Package/Case
TFBGA
Data Bus Width
16b
Density
32Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Supply Current
18mA
Max Supply Voltage
3.6V
Memory Size
32Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF3201-70-4C-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF3201-70-4C-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

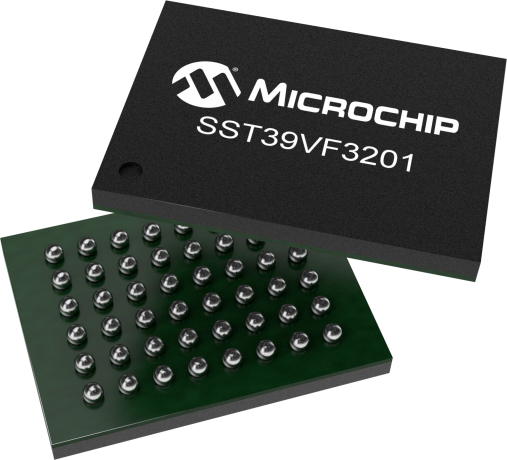

Product Images
