32Mb NOR Flash memory with a 16-bit data bus width and 21-bit address bus width. Features a 70ns access time and operates from a 2.7V to 3.6V supply voltage. Packaged in a 48-pin TFBGA with dimensions of 6mm x 8mm x 0.75mm. This asynchronous interface memory is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageTFBGA
Current15mA
Quick Jump:
Technical Specifications
Microchip SST39VF3201B-70-4I-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
21b
Package/Case
TFBGA
Data Bus Width
16b
Density
32Mb
Height
0.75mm
Interface
Parallel
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
15mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
6mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF3201B-70-4I-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF3201B-70-4I-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

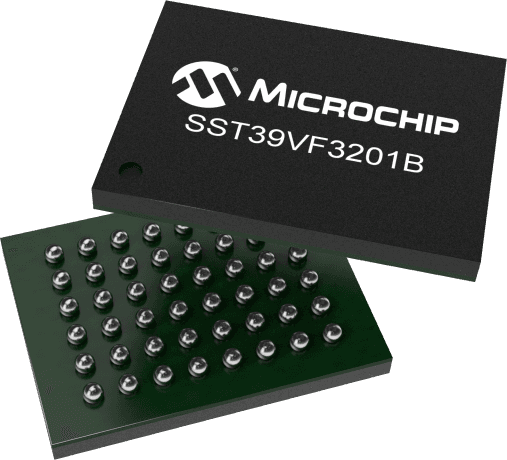

Product Images
