32Mb NOR Flash memory with a 2M x 16 configuration, featuring a 70ns access time and a 16-bit data bus. This parallel interface component operates at 3.3V, with a supply voltage range of 2.7V to 3.6V. Packaged in a 48-pin TSOP, it offers a wide operating temperature range from -40°C to 85°C. The memory is lead-free and RoHS compliant.
PackageTSOP
Current15mA
Quick Jump:
Technical Specifications
Microchip SST39VF3201C-70-4I-EKE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
21b
Package/Case
TSOP
Data Bus Width
16b
Density
33554432b
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
18.5mm
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
15mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
12.2mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF3201C-70-4I-EKE Datasheet
Download the complete datasheet for Microchip SST39VF3201C-70-4I-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

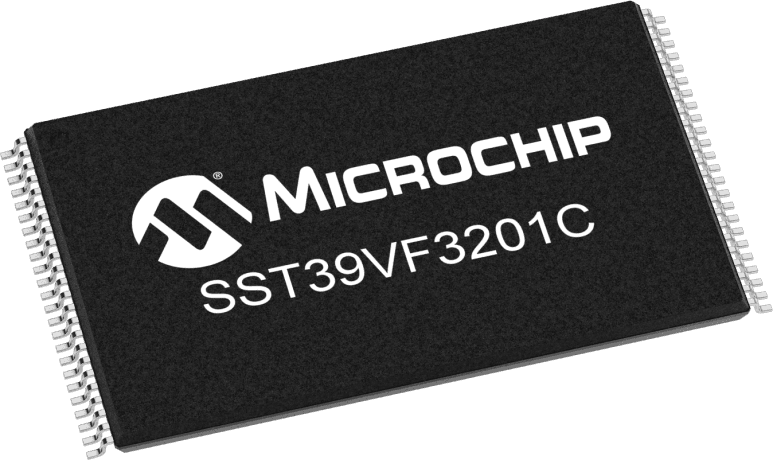

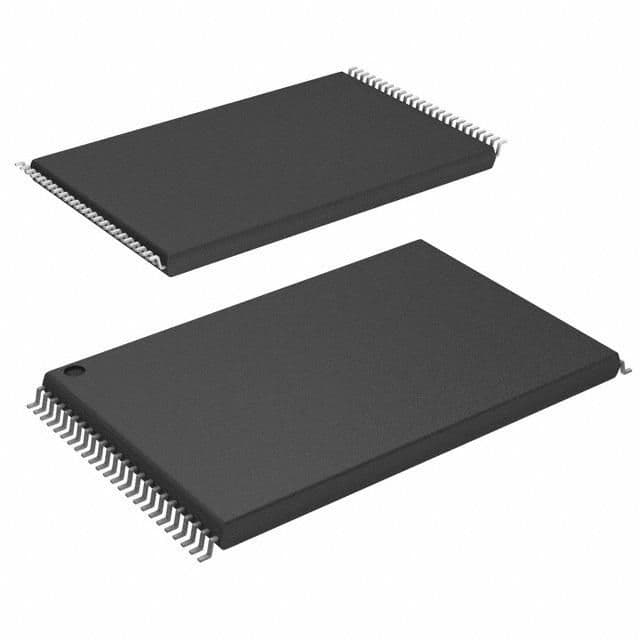

Product Images
