32Mb NOR Flash memory with a 16-bit data bus width and 70ns access time. This surface-mount component operates from a 2.7V to 3.6V supply voltage, featuring a 3.3V nominal operating voltage. The TFBGA package offers a compact footprint for integration. RoHS compliant and lead-free, this memory is designed for parallel interface applications.
PackageTFBGA
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39VF3202-70-4C-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
21b
Package/Case
TFBGA
Data Bus Width
16b
Density
32Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
32Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF3202-70-4C-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF3202-70-4C-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

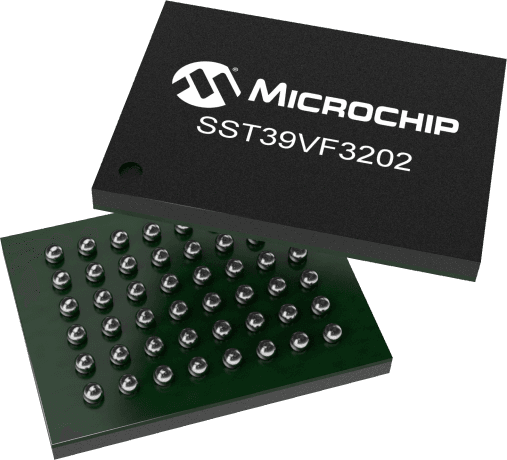

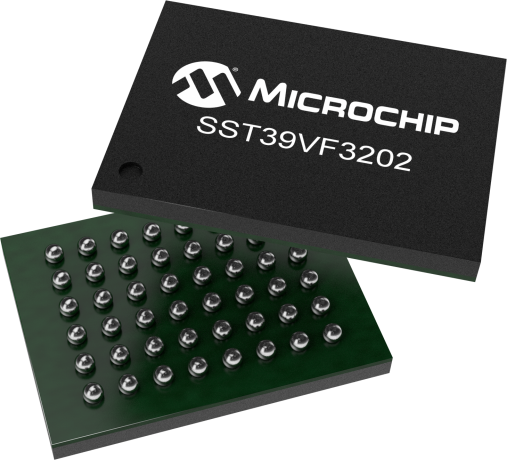

Product Images
