4Mb NOR Flash memory with a 256K x 16 organization, featuring a 70ns access time and a 16-bit data bus. This parallel interface component operates at 3.3V and supports an 18-bit address bus. Packaged in a 48-pin TFBGA, it offers a memory density of 4 Megabits and is RoHS compliant.
Frequency14MHz
PackageTFBGA
Current30mA
Quick Jump:
Technical Specifications
Microchip SST39VF400A-70-4C-B3KE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
18b
Package/Case
TFBGA
Data Bus Width
16b
Density
4Mb
Frequency
14MHz
Height
0.75mm
Interface
Parallel
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
70°C
Memory Size
4Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Number of Words
256000
Operating Supply Voltage
3.3V
Organization
256K x 16
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
30mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
6mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF400A-70-4C-B3KE Datasheet
Download the complete datasheet for Microchip SST39VF400A-70-4C-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

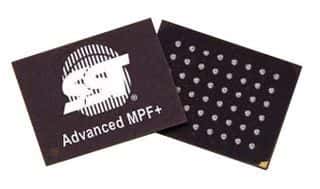

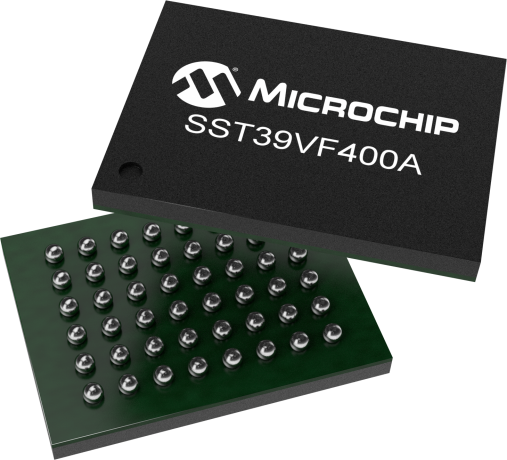

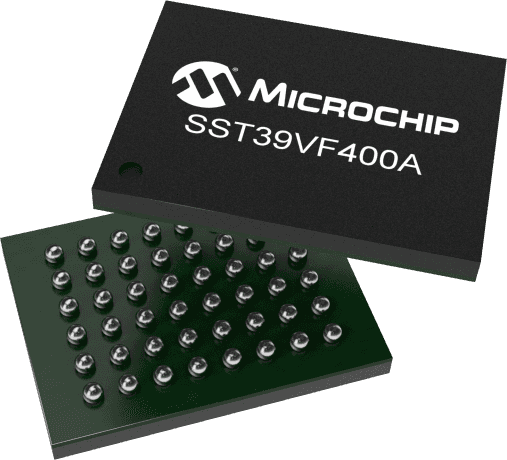

Product Images
